two bathrooms with shower shared

Briefing

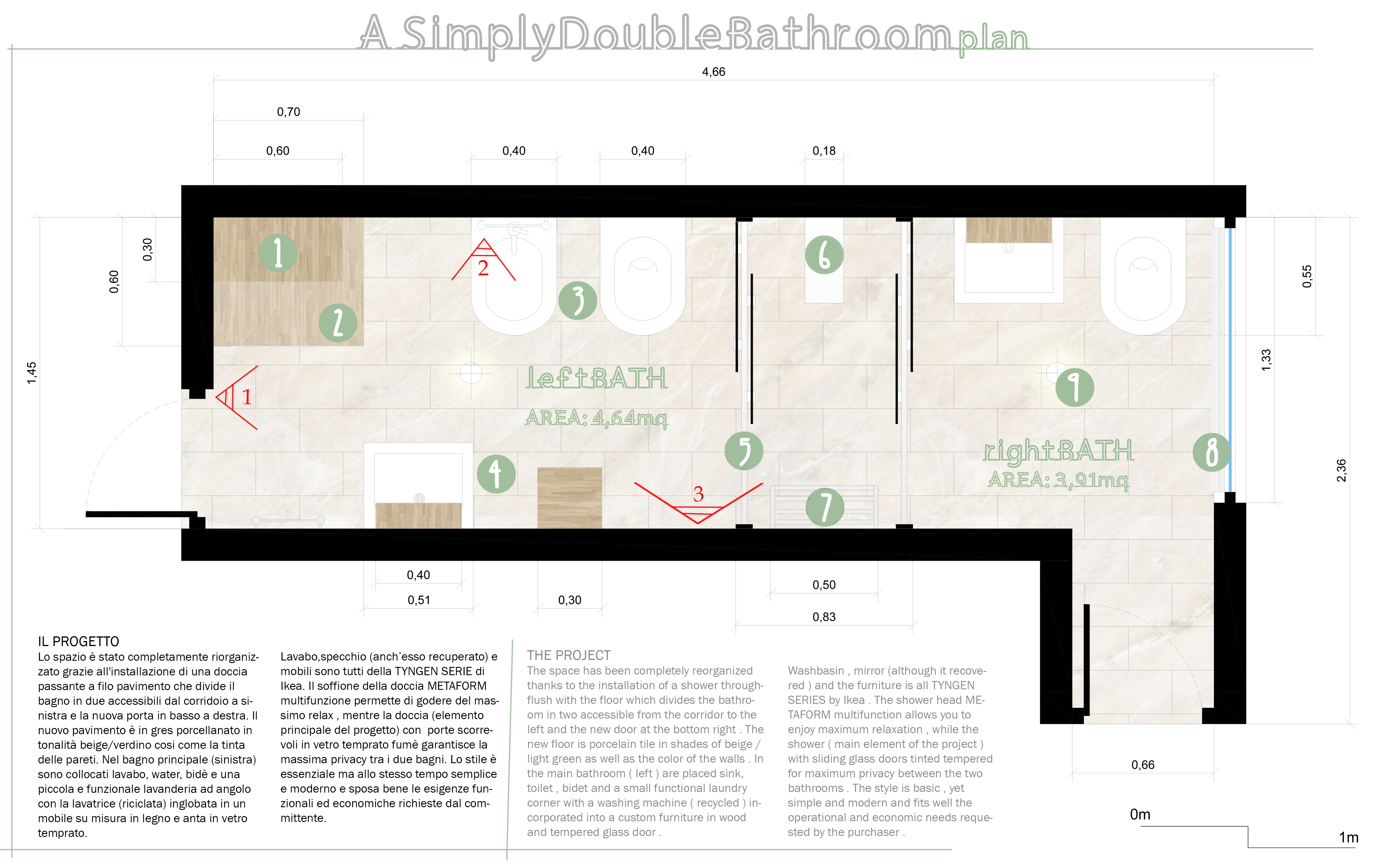

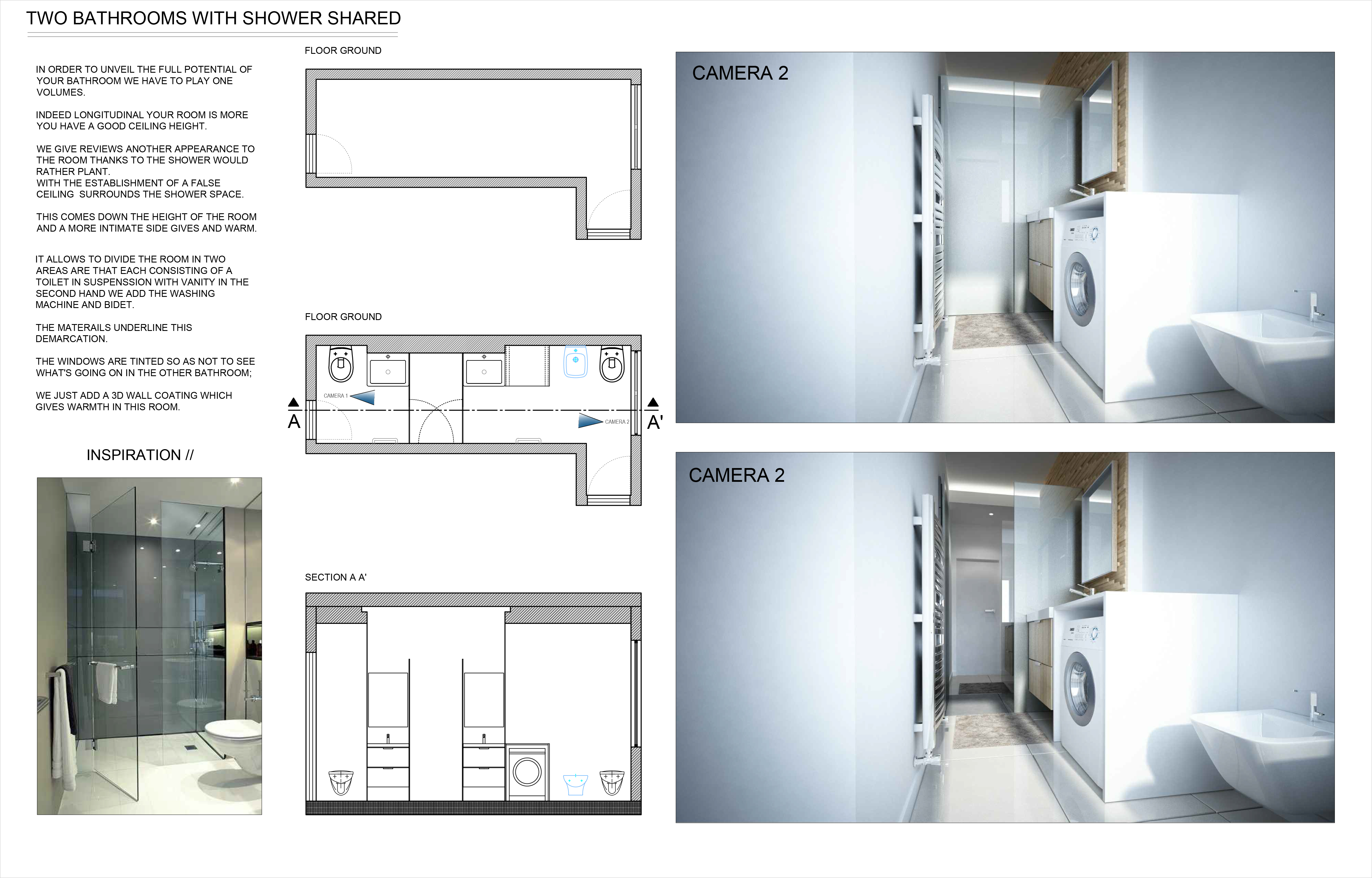

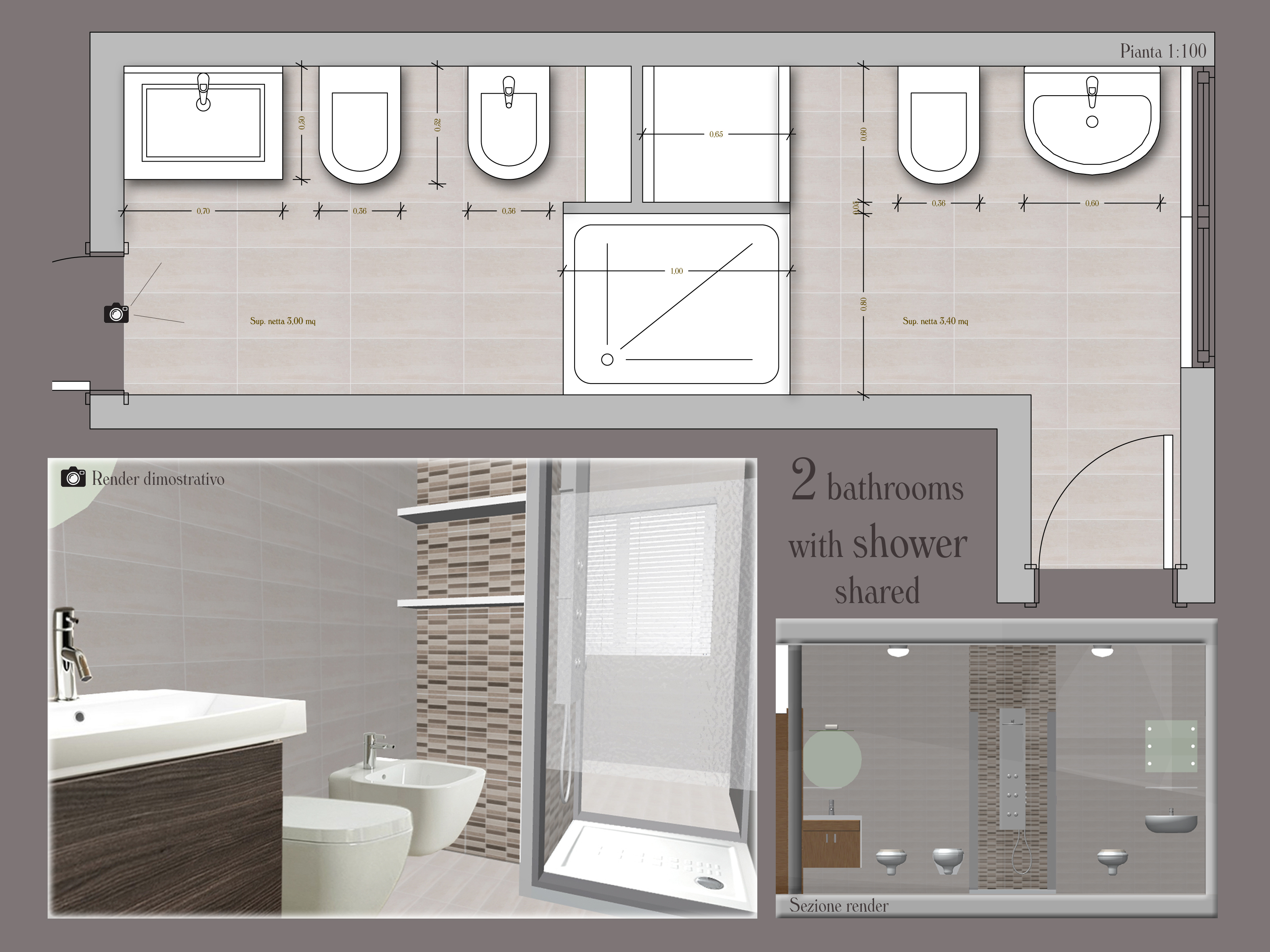

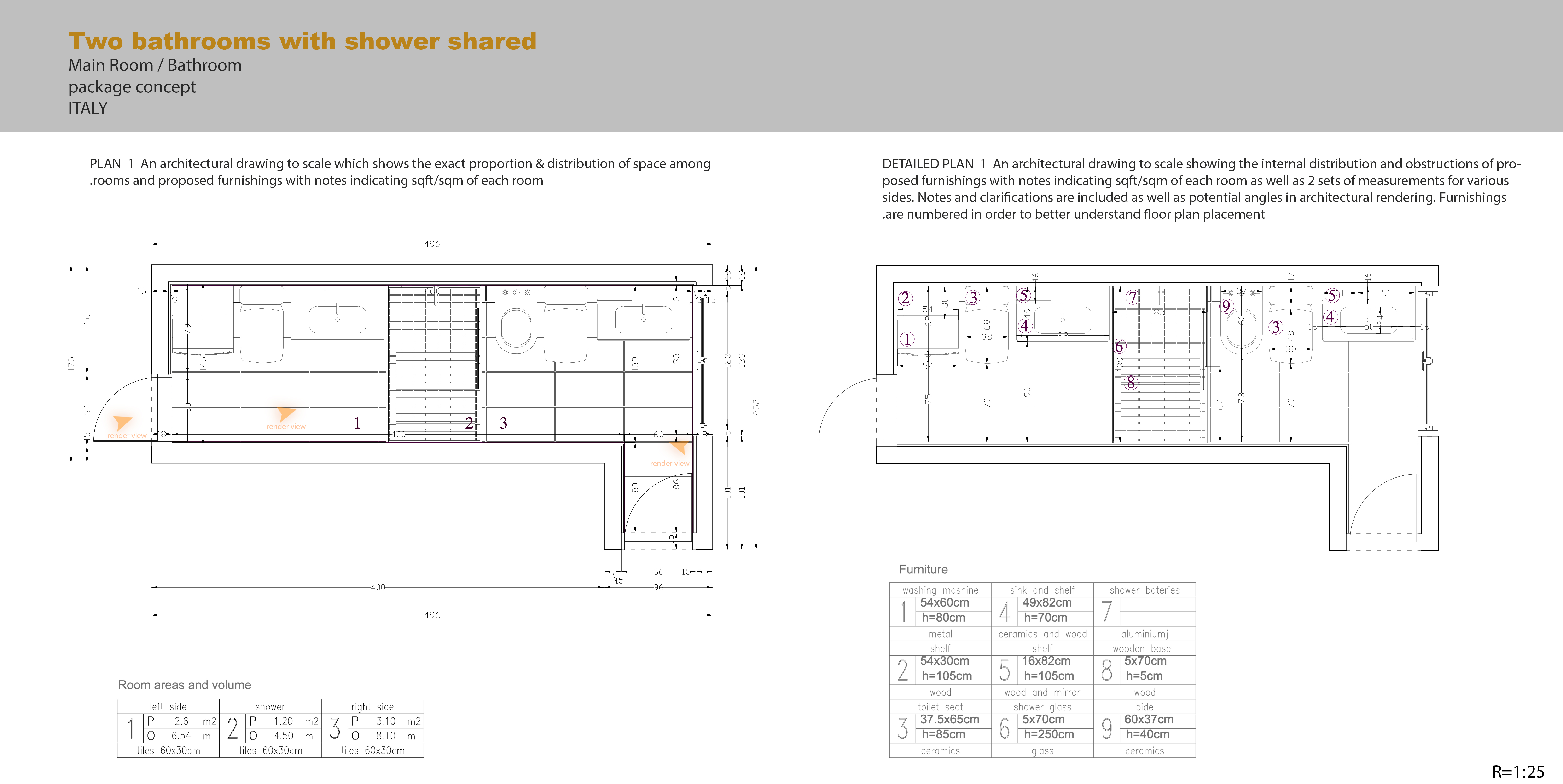

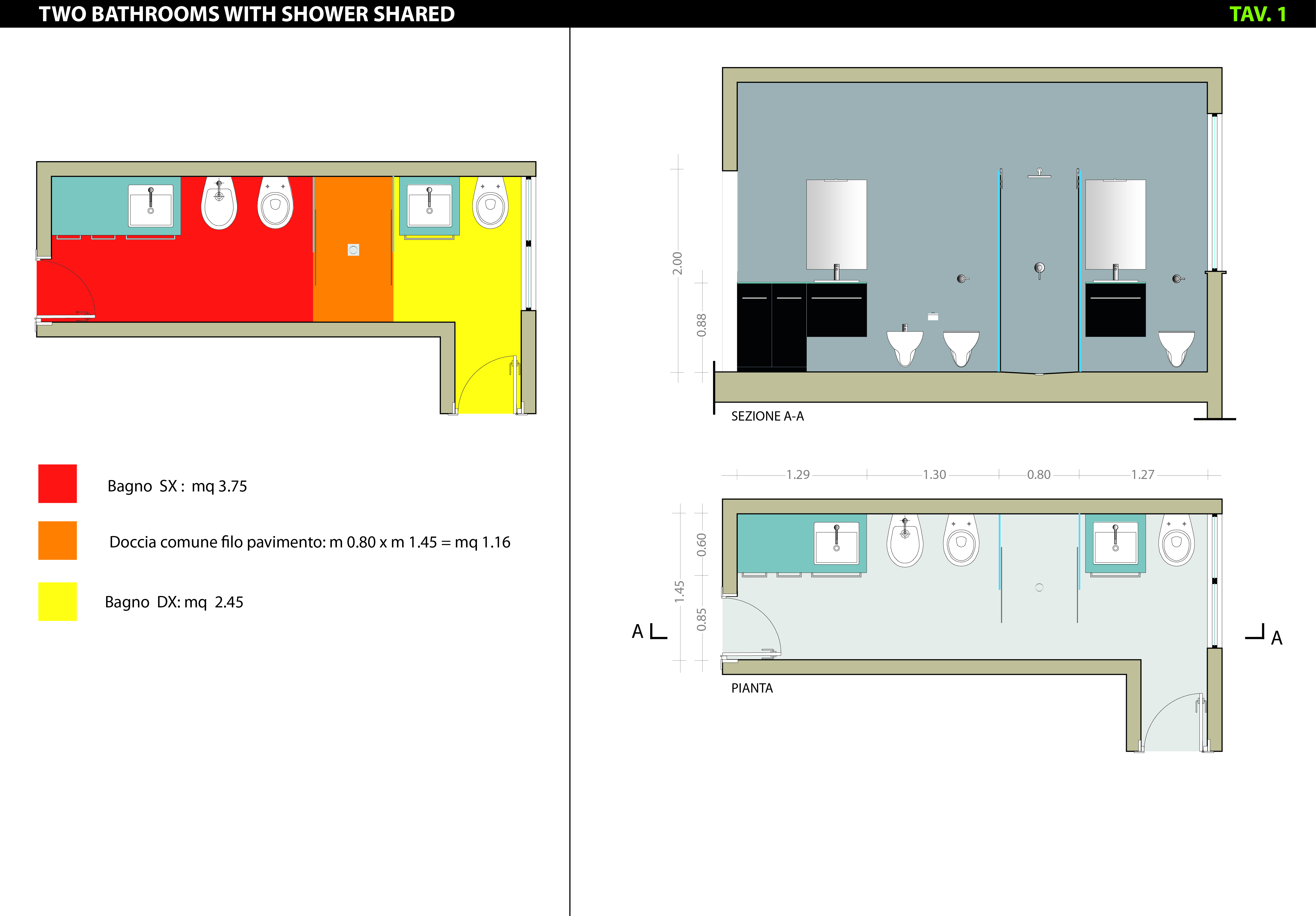

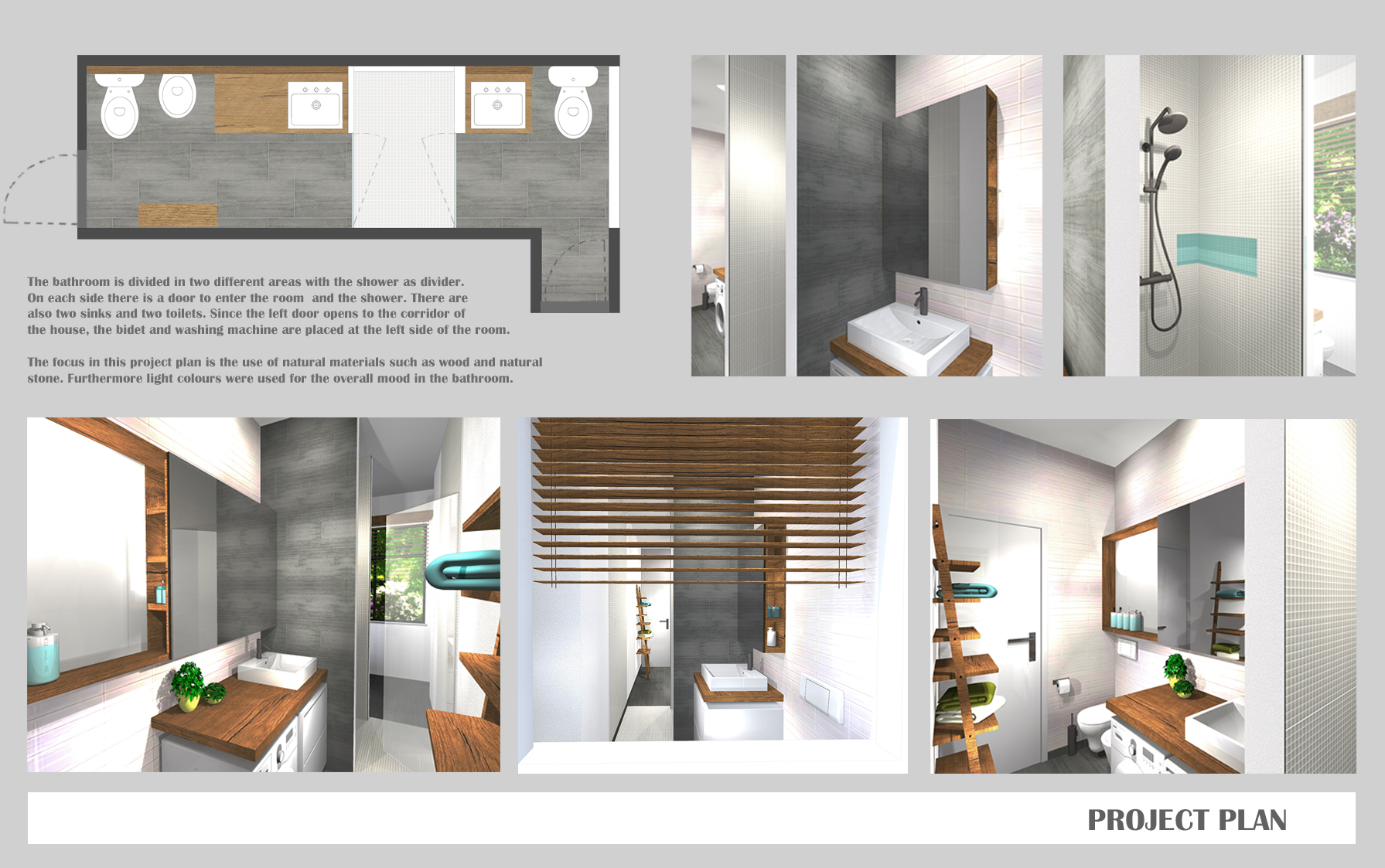

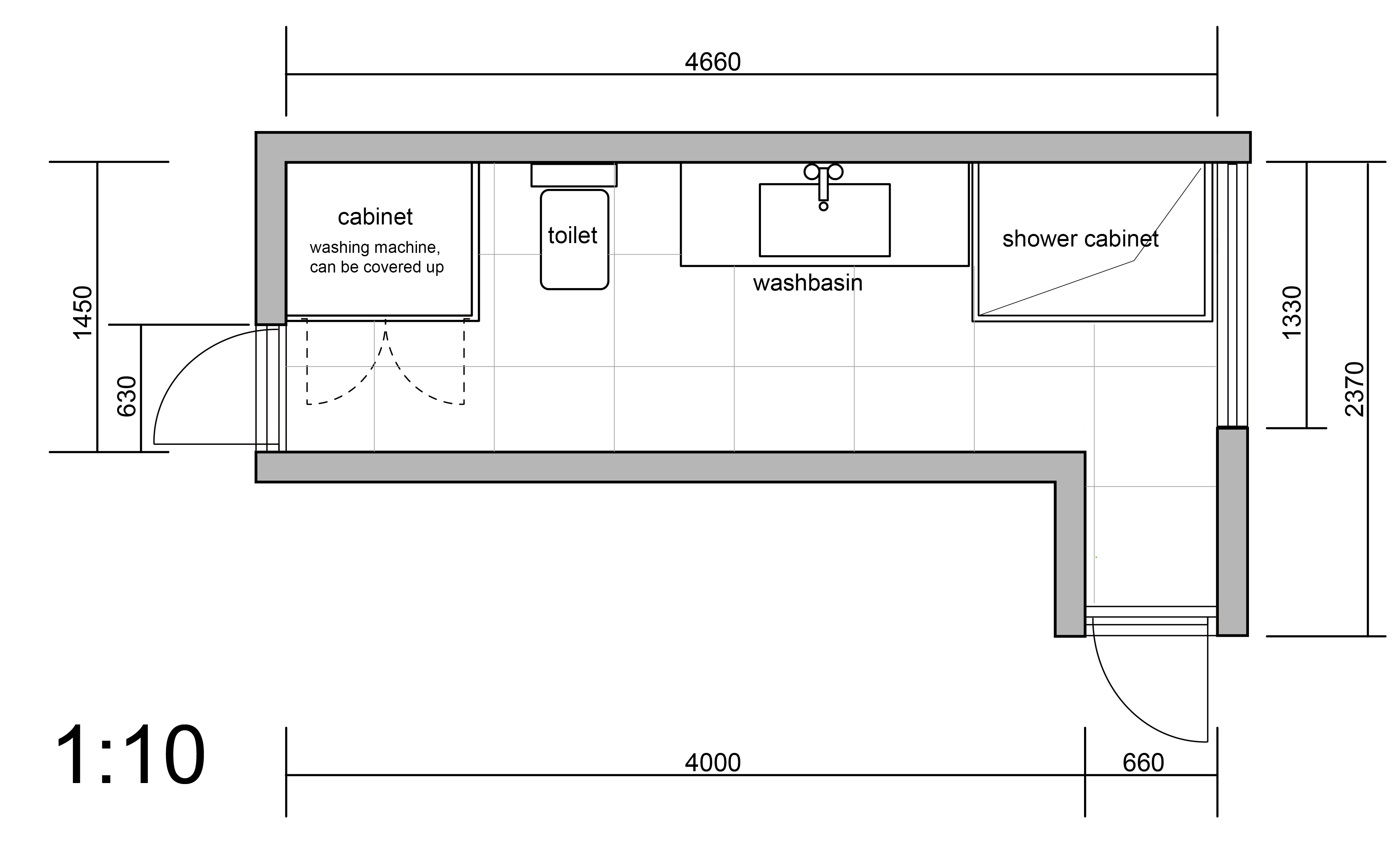

i would like change the arrangement of the bathroom. due to problem on the drain of the shower. it needs to be moved near the window. ( my idea was to split the bathroom in two different area with the shower as divider) i need one sink and one wc in every two areas , only one bidet. and space for washing machine. i suggest to place the door in the square space on the right bottom . the wall on the bottom of this space adjoins with my bedroom. the scale of the map is 1:25. i want recycle the washing machine. the mirror. of course no bath tub in the future. heat radiators are embedded in the floor. ikea furnitures are enough. the size are 4.68 meters length 1.45 m the recess is 66 cm X 60 Cm
